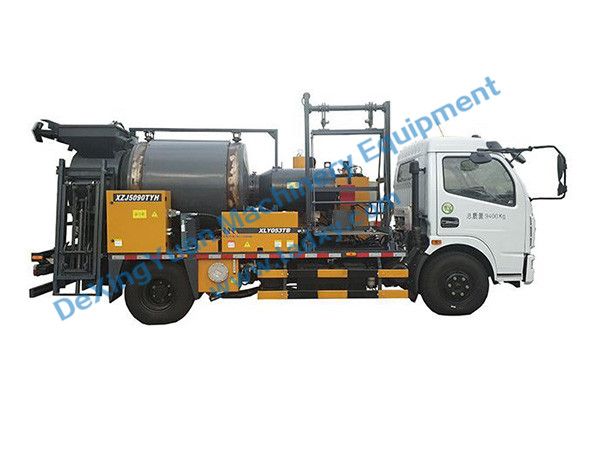

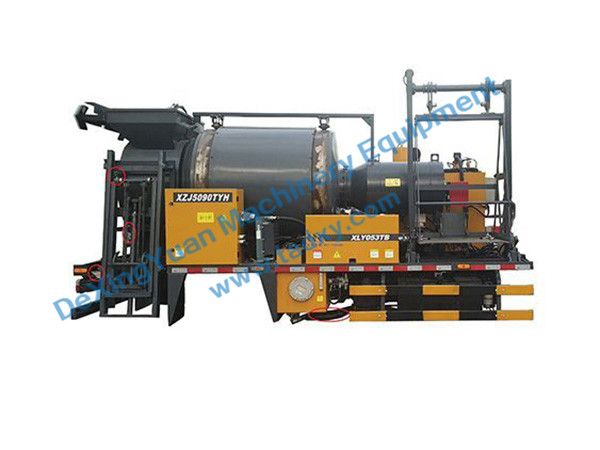

XZJ5090TYH(XLY053TB) Pavement Maintenance Vehicle
1. Overview
XZJ5090TYH(XLY053TB) pavement maintenance vehicle is applicable for the rapid repair of chuck holes on highway, national and provincial trunk roads, municipal roads and asphalt pavement, and can meet various construction process requirements such as rapid heating of cold finished product mixture, regenerative heating of milling old materials, field frying of asphalt mixture. In addition, the vehicle is characterized by multiple function in one machine, easy operation and high reliability.
2 Main performance and characteristics
*Chassis gearbox PTO is adopted to supply power for working devices, reliable performance and convenient maintenance available
*Adopt gear motor to drive the rotating drum, friction drive, stable operation, low noise, small vibration impact.
*Heating system for hot-air circulation mixing tank, which is characterized by quick heating and energy conservation and environmental protection, with effective heating volume of 0.5m3.
*Optimized drum spiral discharging system, which is characterized by quick discharging speed and no residue.
*It is equipped with hydraulic feeding, asphalt mixture heating, asphalt spraying, discharging, waste storage and other functions. Optional cutting machine, hydraulic crushing picks for rapid cutting and crushing of diseases in base layer and optional walk-behind single drum roller for compaction of road surface.
*Heat-conducting oil heating asphalt system, which can automatically measure asphalt capacity and achieve precise control;
*Electrical heating emulsified asphalt spraying system, which adopts automatic telescoping spray tube and has the functions of diesel and pneumatic cleaning;
*Hydraulic roller lift bracket is placed behind the cab and easy to operate;
*Hydraulic power (14Mpa) output to connect with attachments swiftly;
*5kW power output(380V/220V) interface to connect lighting and electric auxiliary tools.
*High and low voltage instrument box, which can display working parameter in real time and is safe and convenient;
Item | Unit | Parameter | |
Product model | - | XZJ5090TYH (XLY053TB) | |
Working performance parameter | |||
Drum bunker | Effective capacity | m3 | 0.5 |
Screed heating mode | / | Heated air circulation | |
Discharging speed | kg/min | 380 | |
Feeding hopper capacity | m3 | 0.11 | |
Single heating time of mixing silo | min | 15～ 20 | |
Feeding mode | / | Hydraulic automation | |
Hot asphalt system | Tank body capacity | L | 480 |
Screed heating mode | / | Diesel burner | |
Emulsified asphalt system | Tank body capacity | L | 40 |
Screed heating mode | / | Electrical heating (1kw) | |
Diesel cleaning box volume | L | 15 | |
Chassis performance parameter | |||
Type | / | Donfeng Duolika EQ1090SJ8BDC | |
Engine type | / | CY4SK251 | |
Engine power/speed | kW/r/min | 115 / 2800 | |
Driving type | / | 4×2 | |
Emission standard | / | China Stage V | |
Maximum traveling speed | km/h | 103 | |
Up-mounted generator parameter | |||
Type | / | FD1F2-4 | |
Power | kW/r/min | 22 / 1500 | |
Overall dimension parameter | |||
Minimum ground clearance | mm | 210 | |
Approach Angle/Departure Angle | ° | 21 / 11.5 | |
Overall dimension(length× width× height) | mm | 6600×2340×2950 | |
Mass parameters of whole machine | |||
Curb weight | kg | 8250 | |
Total mass | kg | 9400 | |
Auxiliary tools (optional) : roller, hydraulic pick, cutting machine, dust collector, blower, plate hammer and shocking rammer etc. | |||
